B7-CD28 Family——PD-1/PD-L1/PD-L2 Pathway

>>>Immune Checkpoint Bispecific Antibody Targets

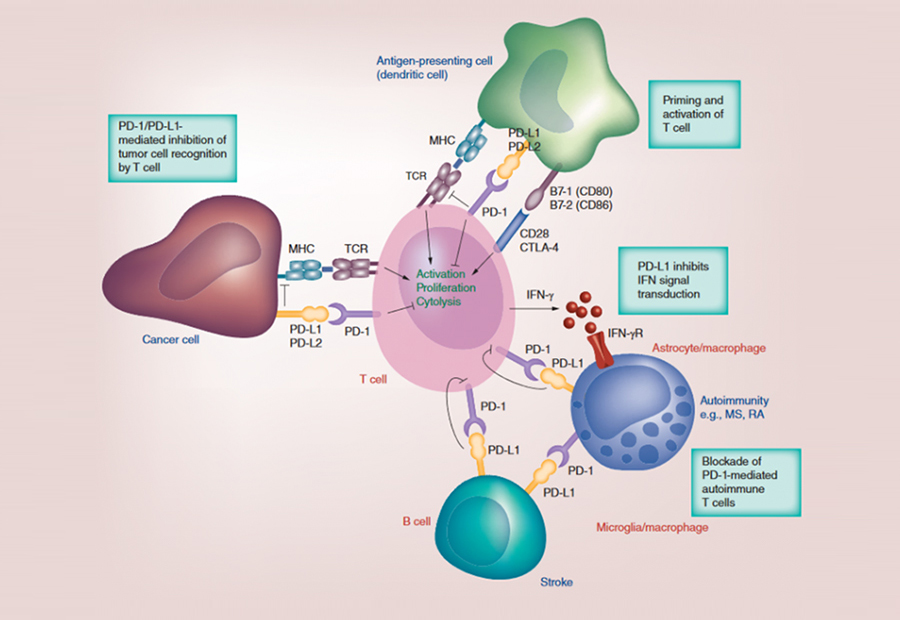

The PD-1/PD-L1 Axis and Co-signaling Networks: Orchestrating T Cell Responses in Cancer and Autoimmunity
Resource：https://www.globecancer.com/azzx/show.php?itemid=15812

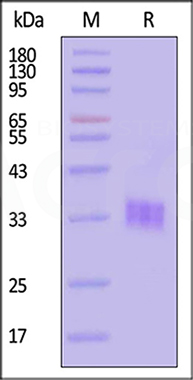

Human PD-L1, His Tag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 98% (With Star Ribbon Pre-stained Protein Marker).

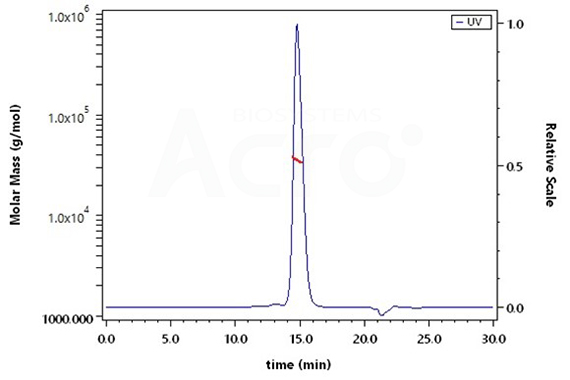

The purity of Human PD-L1, His Tag (Cat. No. PD1-H5229) is more than 90% and the molecular weight of this protein is around 30-50kDa verified by SEC-MALS.

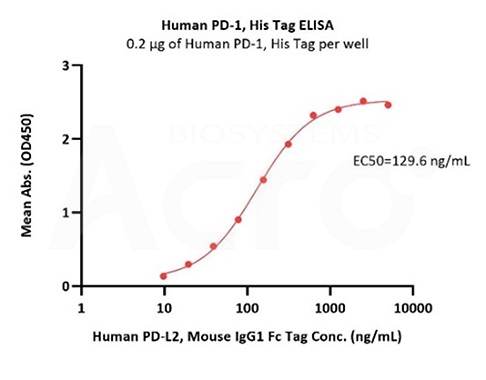

Immobilized Human PD-1, His Tag (Cat. No. PD1-H5221) at 2 μg/mL (100 μL/well) can bind Human PD-L2, Mouse IgG1 Fc Tag (Cat. No. PD2-H52A5) with a linear range of 10-156 ng/mL (Routinely tested).

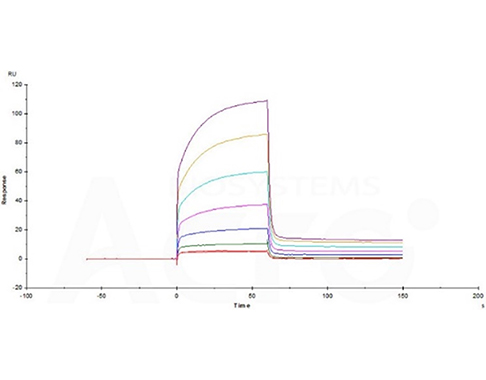

Human PD-1, Fc Tag (Cat. No. PD1-H5257) captured on CM5 chip via anti-human IgG Fc antibody, can bind Human PD-L1, His Tag (Cat. No. PD1-H5229) with an affinity constant of 3.6 μM as determined in a SPR assay (Biacore T200) (Routinely tested).

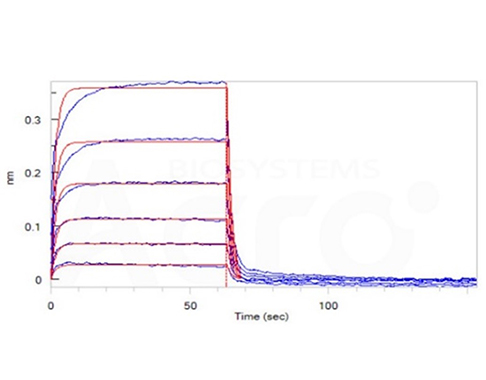

Loaded Human PD-1, Fc Tag, low endotoxin (Cat. No. PD1-H5257) on Protein A Biosensor, can bind Human PD-L1, His Tag (Cat. No. PD1-H5229) with an affinity constant of 5.3 μM as determined in BLI assay (ForteBio Octet Red96e) (QC tested).

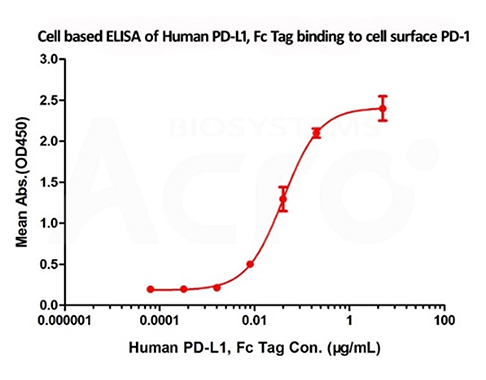

Immobilized cell surface PD-1 (5x104 of cells per well) can bind Human PD-L1, Fc Tag (Cat. No. PD1-H5258) with an EC50 of 0.029 μg/mL (Routinely tested).

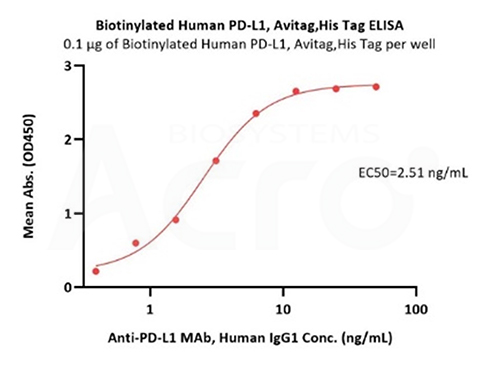

Immobilized Biotinylated Human PD-L1, Avitag,His Tag (Cat. No. PD1-H82E5) at 1 μg/mL (100 μL/well) on Streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate, can bind Anti-PD-L1 MAb, Human IgG1 with a linear range of 0.2-3 ng/mL (Routinely tested).

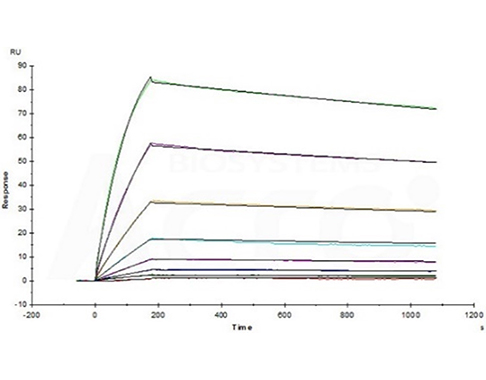

Anti-Human PD-L1 Mab (Human IgG1) captured on CM5 chip via anti-human IgG Fc antibodies surface, can bind Human PD-L1, His Tag (Cat. No. PD1-H5229) with an affinity constant of 0.286 nM as determined in a SPR assay (Biacore T200) (Routinely tested).

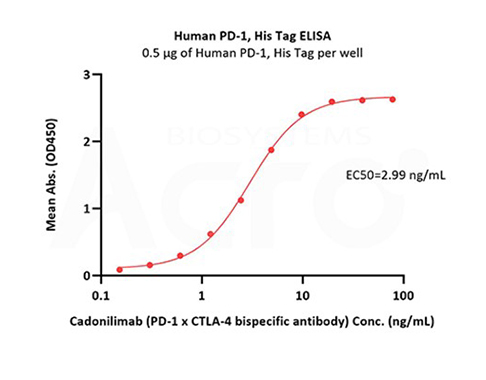

Immobilized Human PD-1, His Tag (Cat. No. PD1-H5221) at 5 μg/mL, add increasing concentrations of Cadonilimab (PD-1 x CTLA-4 bispecific antibody) and then add Biotinylated Human CTLA-4, Fc,Avitag (Cat. No. CT4-H82F3) at 0.2 μg/mL. Detection was performed using HRP-conjugated Streptavidin (Acro, Cat. No. STN-NH913) with sensitivity of 2.99 ng/mL (Routinely tested).

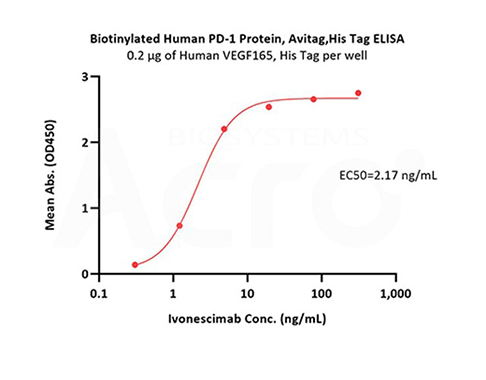

Immobilized Human VEGF165, His Tag (Cat. No. VE5-H5248) at 2 μg/mL, add increasing concentrations of Ivonescimab and then add Biotinylated Human PD-1 Protein, Avitag,His Tag (Cat. No. PD1-H82E4) at 2 μg/mL. Detection was performed using HRP-conjugated Streptavidin (Acro, Cat. No. STN-NH913) with sensitivity of 2.17 ng/mL (Routinely tested).
