Synonym
PDCD1, PD1, CD279, SLEB2
Source
Biotinylated Cynomolgus PD-1, His,Avitag (PD1-C82E6) is expressed from human 293 cells (HEK293). It contains AA Leu 25 - Gln 167 (Accession # B0LAJ3).
Predicted N-terminus: Leu 25
Request for sequenceMolecular Characterization
Other Tags and Version Biotin & Other Labeled Version

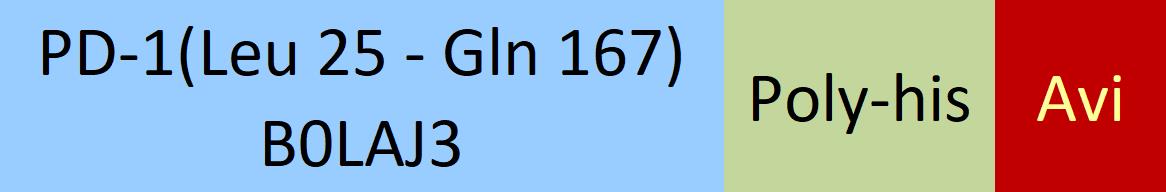

This protein carries a polyhistidine tag at the C-terminus, followed by an Avi tag (Avitag™).
The protein has a calculated MW of 19.5 kDa. The protein migrates as 30-45 kDa when calibrated against Star Ribbon Pre-stained Protein Marker under reducing (R) condition (SDS-PAGE) due to glycosylation.
Labeling
Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
Protein Ratio
Passed as determined by the HABA assay / binding ELISA.
Purity
>90% as determined by SDS-PAGE.
>95% as determined by SEC-HPLC.
Formulation
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Storage
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
ACRO Quality Management System
고객님도 확인한 상품
데이터 표시
SDS-PAGE
Biotinylated Cynomolgus PD-1, His,Avitag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 90% (With Star Ribbon Pre-stained Protein Marker).

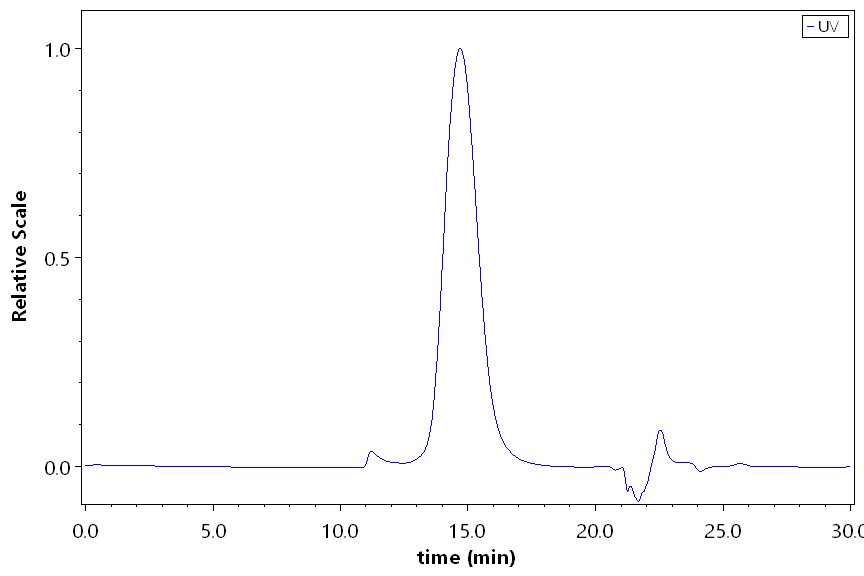

SEC-HPLC
The purity of Biotinylated Cynomolgus PD-1, His,Avitag (Cat. No. PD1-C82E6) was greater than 95% as determined by SEC-HPLC.
Bioactivity-ELISA
Immobilized Biotinylated Cynomolgus PD-1, His,Avitag (Cat. No. PD1-C82E6) at 1 μg/mL (100 μL/well) on streptavidin precoated (0.5 μg/well) plate, can bind Cynomolgus / Rhesus macaque PD-L1, Fc Tag (Cat. No. PD1-C5253) with a linear range of 1-5 ng/mL (QC tested).
Protocol
Immobilized Biotinylated Cynomolgus PD-1, His,Avitag (Cat. No. PD1-C82E6) at 1 μg/mL (100 μL/well) on Streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate, can bind Nivolumab with a linear range of 1-20 ng/mL (Routinely tested).
Protocol

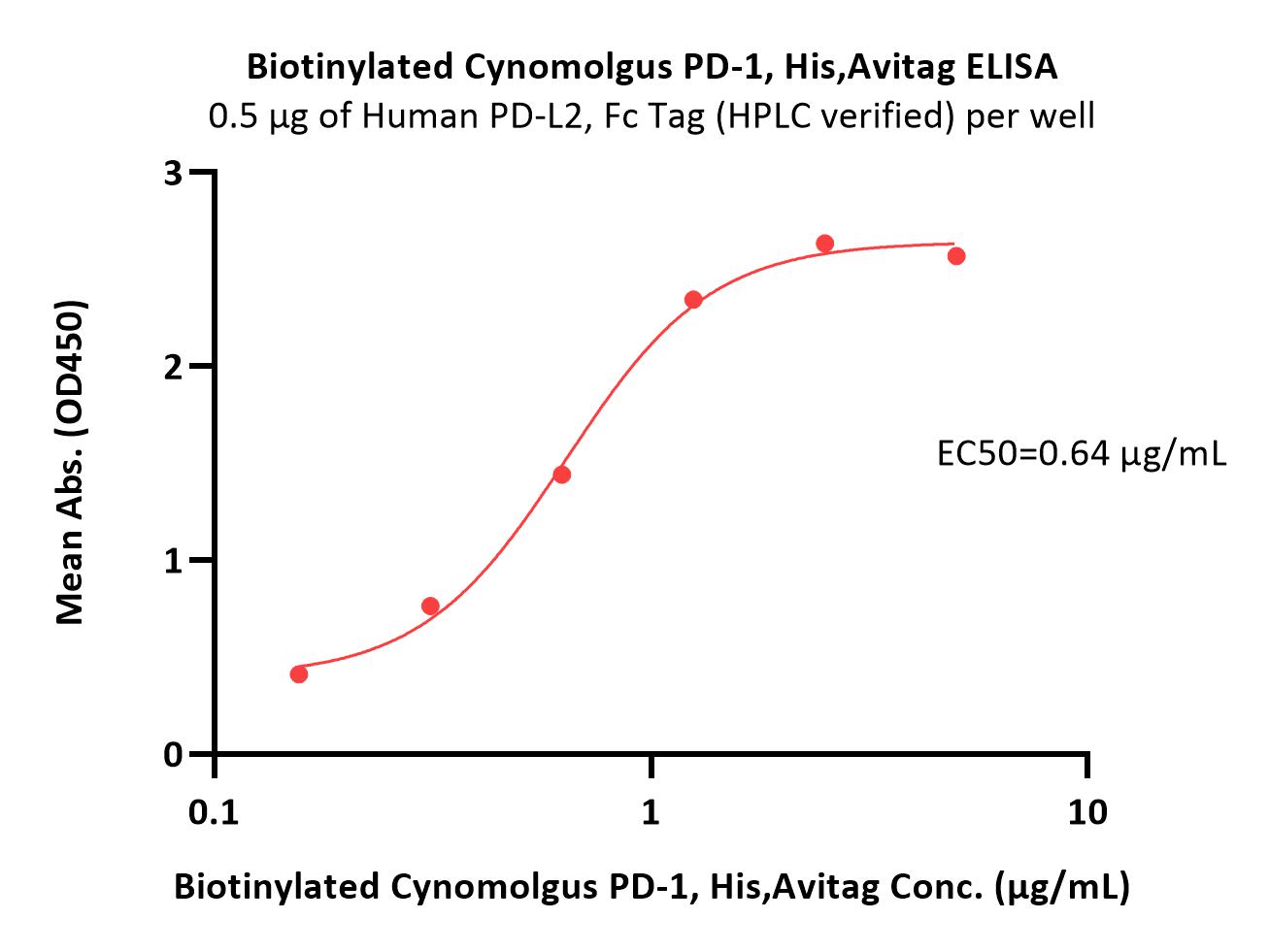

Immobilized Human PD-L2, Fc Tag (HPLC verified) (Cat. No. PD2-H5251) at 5 μg/mL (100 μL/well) can bind Biotinylated Cynomolgus PD-1, His,Avitag (Cat. No. PD1-C82E6) with a linear range of 0.1-1.25 μg/mL (Routinely tested).
Protocol

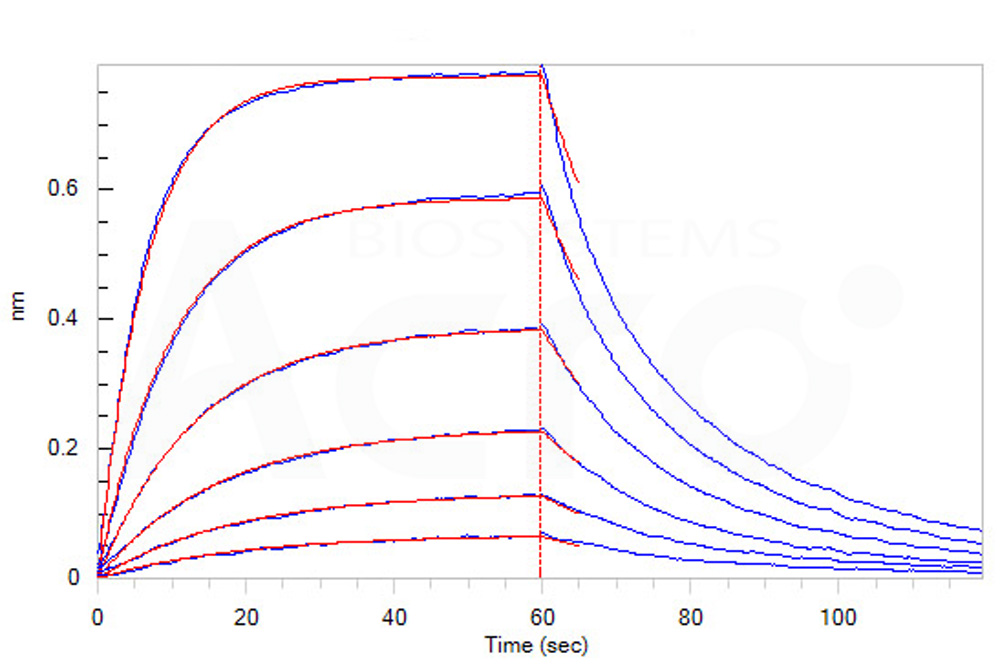

Bioactivity-BLI
Loaded Biotinylated Cynomolgus PD-1, His,Avitag (Cat. No. PD1-C82E6) on SA Biosensor, can bind Cynomolgus / Rhesus macaque PD-L1, His Tag (Cat. No. PD1-C52H4) with an affinity constant of 2.8 μM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
Loaded Biotinylated Cynomolgus PD-1, His,Avitag (Cat. No. PD1-C82E6) on SA Biosensor, can bind Human PD-L2, His Tag (SPR verified) (Cat. No. PD2-H5220) with an affinity constant of 0.49 μM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
