Synonym
CD28, Tp44
Source

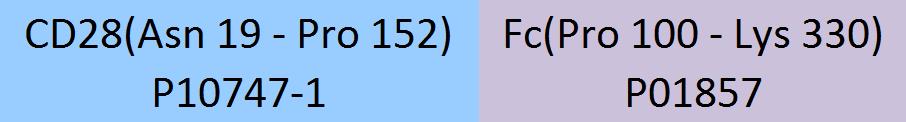

Human / Cynomolgus / Rhesus macaque CD28, Fc Tag (CD8-H525a) is expressed from human 293 cells (HEK293). It contains AA Asn 19 - Pro 152 (Accession # P10747-1). In the region Asn 19 - Pro 152, the AA sequence of Human, Cynomolgus and Rhesus macaque CD28 are homologus.
Predicted N-terminus: Asn 19
Request for sequenceMolecular Characterization
Other Tags and Version Biotin & Other Labeled Version
This protein carries a human IgG1 Fc tag at the C-terminus.
The protein has a calculated MW of 41.6 kDa. The protein migrates as 53-66 kDa under reducing (R) condition, and 100-120 kDa under non-reducing (NR) condition (SDS-PAGE) due to glycosylation.
Endotoxin
Less than 0.01 EU per μg by the LAL method / rFC method.
Purity
>95% as determined by SDS-PAGE.
>95% as determined by SEC-MALS.
Formulation
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Storage
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
ACRO Quality Management System
고객님도 확인한 상품
데이터 표시
SDS-PAGE
Human / Cynomolgus / Rhesus macaque CD28, Fc Tag on SDS-PAGE under reducing (R) and non-reducing (NR) conditions. The gel was stained with Coomassie Blue. The purity of the protein is greater than 95%.
SEC-MALS

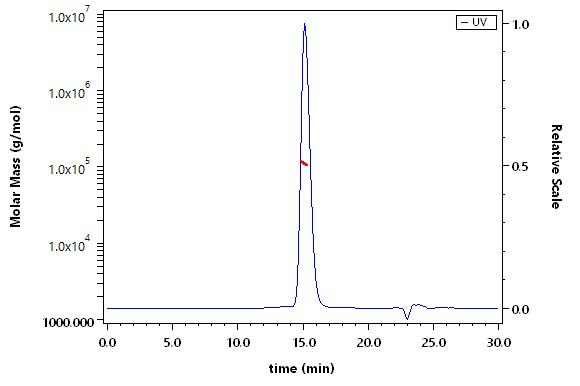

The purity of Human / Cynomolgus / Rhesus macaque CD28, Fc Tag (Cat. No. CD8-H525a) is more than 95% and the molecular weight of this protein is around 105-125 kDa verified by SEC-MALS.
Report
Bioactivity-ELISA
Immobilized Human / Cynomolgus / Rhesus macaque CD28, Fc Tag (Cat. No. CD8-H525a) at 2 μg/mL (100 μL/well) can bind Anti-Mouse CD28 MAb with a linear range of 0.1-2 ng/mL (QC tested).
Protocol
Immobilized Human / Cynomolgus / Rhesus macaque CD28, Fc Tag (Cat. No. CD8-H525a) at 5 μg/mL (100 μL/well) can bind Biotinylated Human B7-1, Fc Tag (Cat. No. B71-H82F2) with a linear range of 0.313-5 μg/mL (Routinely tested).
Protocol
Bioactivity-SPR

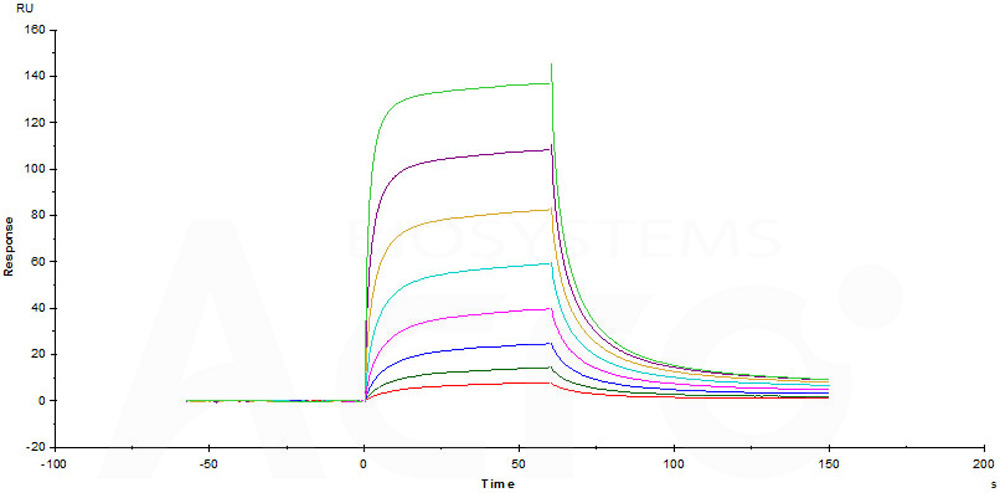

Immobilized Human / Cynomolgus / Rhesus macaque CD28, Fc Tag (Cat. No. CD8-H525a) on CM5 Chip can bind Human B7-1, His Tag (Cat. No. B71-H5228) with an affinity constant of 5.29 μM as determined in a SPR assay (Biacore T200) (Routinely tested).
Protocol

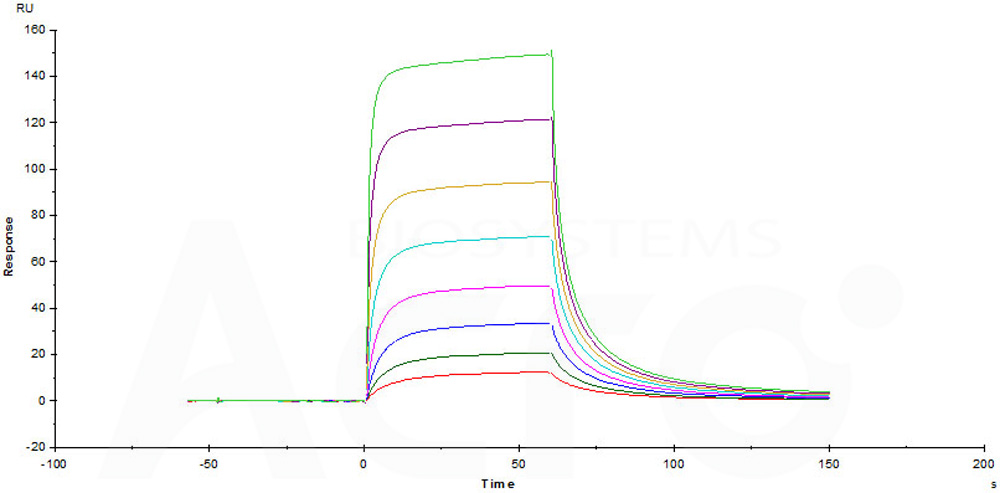

Immobilized Human / Cynomolgus / Rhesus macaque CD28, Fc Tag (Cat. No. CD8-H525a) on CM5 Chip can bind Human B7-1, Mouse IgG2a Fc Tag, low endotoxin (Cat. No. B71-H52A4) with an affinity constant of 2.72 μM as determined in a SPR assay (Biacore T200) (Routinely tested).
Protocol
Immobilized Human / Cynomolgus / Rhesus macaque CD28, Fc Tag (Cat. No. CD8-H525a) on CM5 Chip can bind Human B7-1, Fc Tag (Cat. No. B71-H5259) with an affinity constant of 2.01 μM as determined in a SPR assay (Biacore T200) (Routinely tested).
Protocol
Bioactivity-BLI

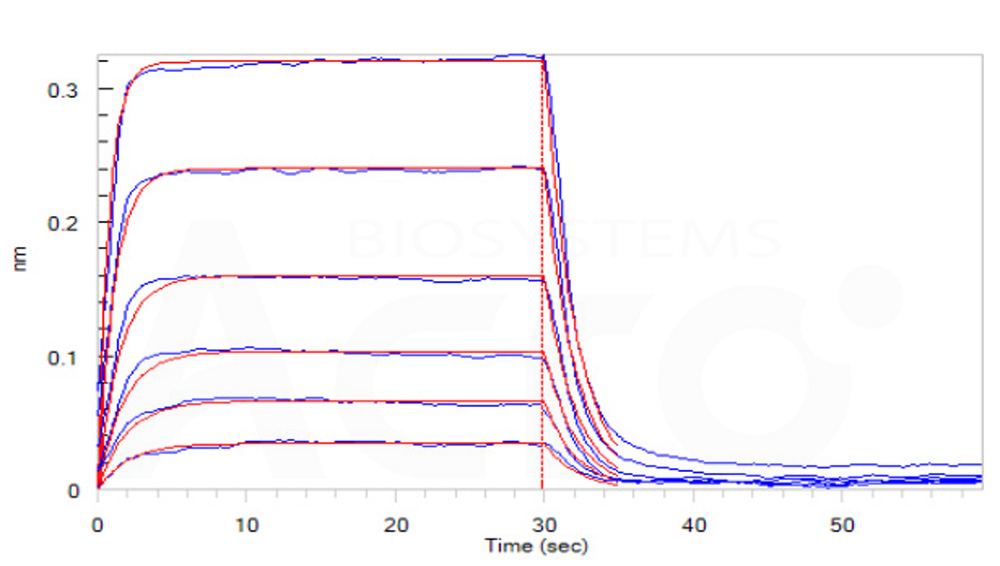

Loaded Human / Cynomolgus / Rhesus macaque CD28, Fc Tag (Cat. No. CD8-H525a) on ProteinA Biosensor, can bind Human B7-1, His Tag (Cat. No. B71-H5228) with an affinity constant of 2.2 μM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol

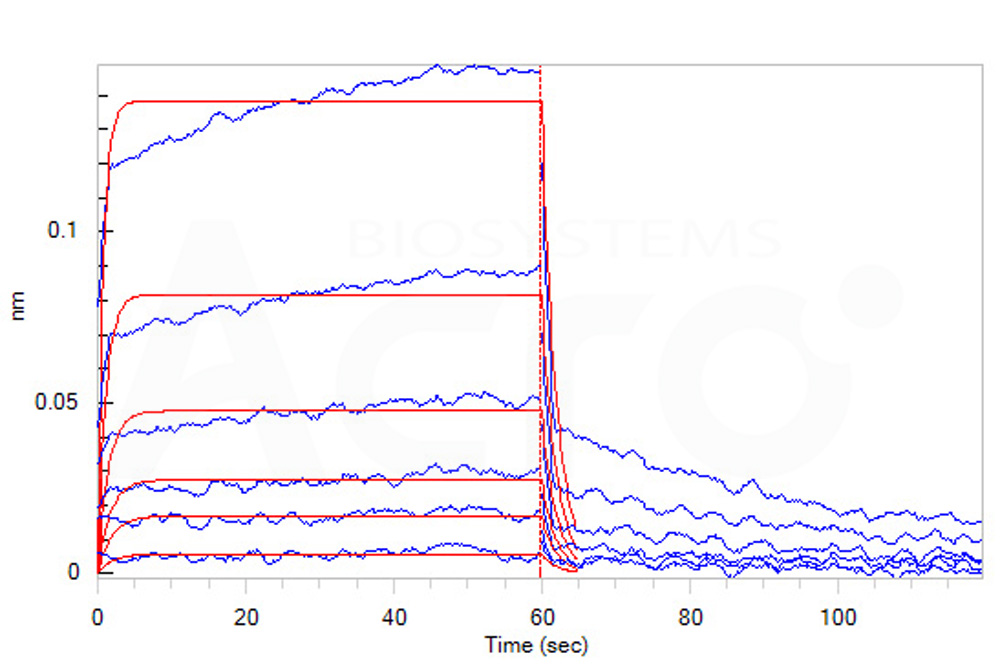

Loaded Human / Cynomolgus / Rhesus macaque CD28, Fc Tag (Cat. No. CD8-H525a) on Protein A Biosensor, can bind Human B7-2, His Tag (Cat. No. CD6-H5223) with an affinity constant of 6.8 μM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
